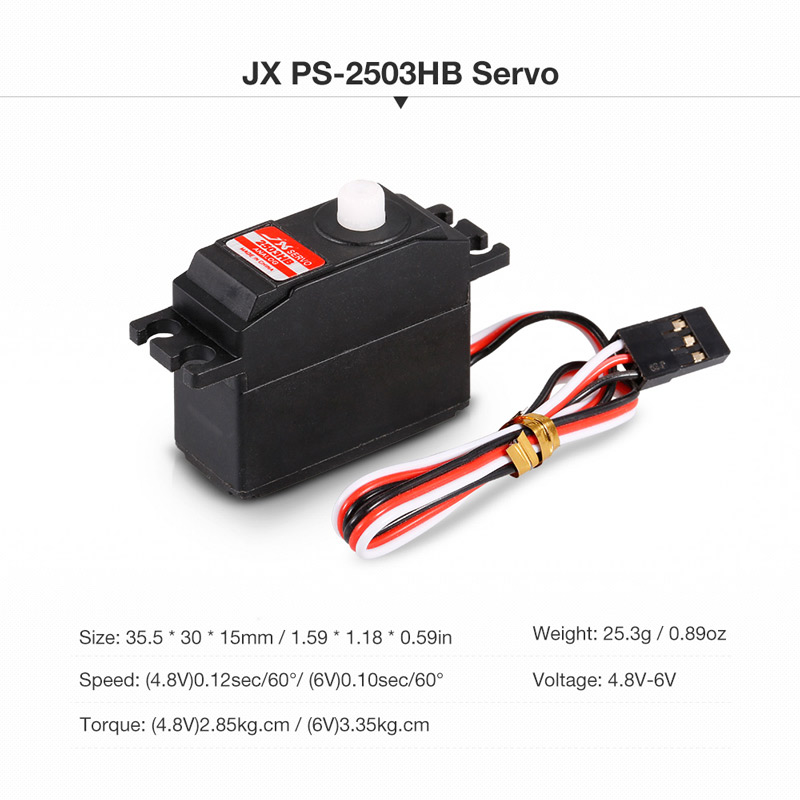

JX PS-2503HB 4.8V-6V High-Voltage 0.10sec/60° 3.35kg Digital Plastic Gear Analog Mini Servo Aluminums Case for 1/12 RC car

Price:
US$5.05

Free Shipping

The product you want to order is in stock. All orders are delivered within 24 hours after they are placed.
This is JX PS-2503HB 4.8V-6V High-Voltage 0.10sec/60° Digital Plastic Gear Analog Mini Servo Aluminums Case for 1/12 RC car.

Features:
High precision plastic gear
3.35kg large torque.3.35kg·cm @6V
High Speed 0.10sec/60 @6V
4.8V-6V High-Voltage
Modified design and high quality
Ideal choice for 1/12 RC car

Specifications:
Brand: JX
Motor: Core motor
Dead band: 7μs
Bearing: 2BB
Working Frequence: 1520μs / 50hz
Connector Wire Length: 180mm / 7.1in
Operating Speed (4.8V): 0.12sec / 60°
Operating Speed (6V): 0.10sec / 60°
Stall Torque (4.8V): 2.85kg.cm
Stall Torque (6V):  3.35kg.cm
Dimensions: 35.5 * 30 * 15mm / 1.59 * 1.18 * 0.59in
Weight:  25.3g / 0.89oz

Package Information:
Package size: 6.3 * 5 * 4cm / 2.5 * 1.9 * 1.6in
Package weight: 39g / 1.37oz
Brand gift box package

There may be some deviation due to manual measurement.

Package List:
1 * Plastic Gear Analog Servo
1 * Fittings Set
